AATCC 42 Fabric Water Resistance Permeability Tester, Textile Impact Penetration Tester
Model
NG-524
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:

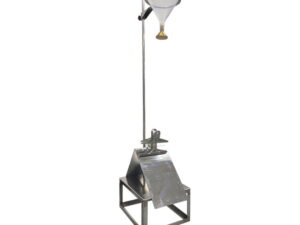

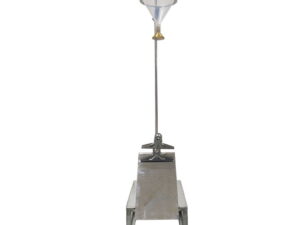

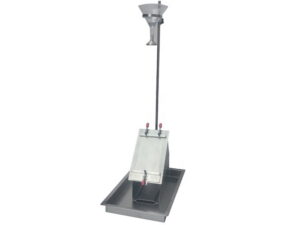

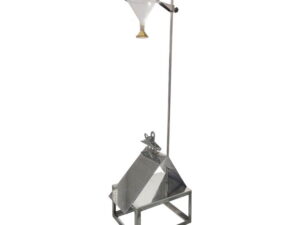

This Fabric Water Impact Penetration Tester applies to measure the resistance of fabrics to the penetration of water by impact, and thus can be used to predict the probable resistance of fabrics to rain penetration. It is made of stainless steel.
Applicable Standards:
T/CTES 1013-2019 single-level performance technical specification for medical protective clothing and isolation
YY/T 1632-2018 Medical protective clothing materials water resistance impact penetration test method
GB/T 24218.17-2017 Test methods for nonwoven fabrics Part 17: Determination of water permeability resistance
AATCC 42-2013 impact permeability test method
ETC ..
Main Parameters:
Item
Fabric Water Impact Penetration Tester
The distance from the bottom of spray
head to the center of specimen
(610±10)mm
Diameter of funnel
152mm
Specimen gradient
45°
Specimen size
(178±10)mm×(330±10)mm
Nozzle
Inner diameter 45.4mm, 25 holes, 0.99mm±0.005mm
Mass of spring clamp
(0.45±0.05)kg
Measure glass capacity
500ml
