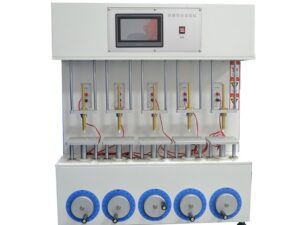

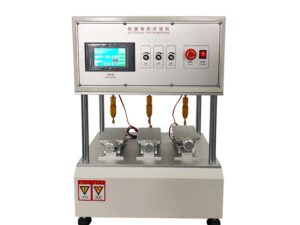

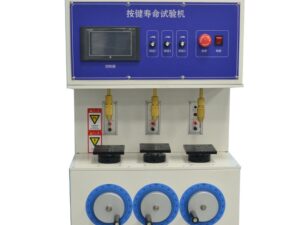

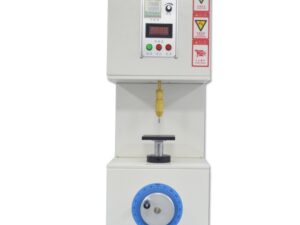

Key and Button Life Fatigue Tester, Switch Button Lifetime Testing Machine
Model
NG-211
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Phone keys striking life aging test machine is suitable for striking life aging test of button switches, computer keyboards, conductive rubber keypads, metal shrapnel keys (commonly known as” pot son”) or the same type of buttons and keys. The advanced programmable controllers will supervise the entire progress of key life test.
Principle:
Phone keys striking life aging test machine use motor drive eccentric make connecting rod moves up and down, back and forth to hit the button; Set the counter test times, thus to determine the stand or fall of silicone buttons.
Features:
1. This machine adopts mechanical and reciprocating design. At the same time, it is equipped with motor drive. Its upper and lower compression institutions adopt motion method of linear bearing. Its positioning test is accurate and running is stable;
2. It adopts LED digital counter (touch screen controller be optional), its biggest counting number can up to 99999999 times;
3. It adopts LED digital speedometer, and it can observe test speed directly;
4. Low voltage, safe and reliable;
The operation is simple and detection is accurate.
Specifications
Model
NG-211
Testing station
1,3,5 station be optional
(Work at the same time, independent control setting)
Durable speed
1-6 rounds/s OR speed adjustable
Test pressure
MAX load: 2kgf, loaded weight adjustable
Up and down stroke
10mm
The amount of movement in the test bench
80 * 80mm
The panel size
50mm
The impact way of movement
up and down compression using linear bearing motion,accurate positioning
Conductive test button
Automatic stopping devices if the keys non-conductive and destroyed
Automatic stop device can be set to 8 digits
99999999 times automatic shutdown
Touch warming lights
connected by touch probe with metal reeds
