Description

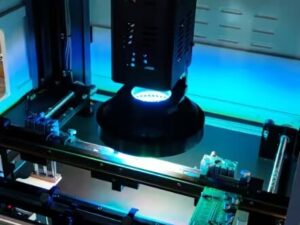

5 million pix full-color high speed digital camera, ensure high efficiency, high quality and high stability of image shooting, restore the real and natural image effect.a. Windows 7 x64 operation system，high data processing speed.b. GPU independent hardware processing images, while CPU processing non-image computing， so as to balance the efficiency of computer system.c. Thousands of sales, advanced and upgraded configuration and continuous technological innovation based on 6 series AOI products, high stability and efficiency.d. Optional telecentric lens with high resolution, unique parallel light design, PCBA tilted or tall components can be distinctly displayed.e. Intelligent and fast programming，intelligent algorithm, no need of manual intervention, easy to learn, high detection rate, low error rate.f. Flexible and mobile maintenance station and SPC checking terminal.g. Mobile devices under wireless network, working station can be set up flexibly on workshop in one to many mode: the detection data of multiple online machines can be checked through one maintenance workstation, the defect details are clearly reported. SQL data system are well-defined, SPC report with pie chat and histogram, very convenient for customer process analysis and quality improvement.h. Convenient and practical offline programming software OLP. PCB genuine image can be taken in real time and stored in full memory, ensure high efficient programming under circumstances of either online or offline.
Inspection systemApplicationAfter stencil printing, after/before reflow oven, after/before wave soldering Program modeManual programming, auto programming, CAD data importingInspection ItemsStencil printing: Solder unavailability, insufficient or excessive solder, solder misalignment, bridging, stain, scratch etc.Component defect: missing or excessive component, misalignment, uneven, edging, opposite mounting, wrong or bad component etc.DIP: Missing parts, damage parts, offset, skew, inversion,etcSoldering defect: excessive or missing solder, empty soldering, bridging, solder ball, IC NG ,copper stain etc.Calculation MethodColor calculation, color extraction, gray scale operation, image contrastInspection modePCB fully covered, with array and bad marking functionSPC statistics functionFully record the test data and make analysis, with high flexibility to check production and quality statusMinimum componentMissing parts, damage parts, offset, skew,sidewaysOptical system Camera full color high speed industrial digital cameraLens resolution10um/15um/18um/20um/25um, can be custom-madelighting sourceAnnular stereo multi-channel color light, RGB/RGBW/RGBR/RWBR optionalComputer systemConfiguration A800 Custom configurationMechanical systemMoving and inspection mode Y servo motor driving PCB, X servo motor driving cameraPCB dimension50*50mm(Min)～500*400mm(Max)， can be customizedPCB thickness0.3～5.0mmPCB weightMax：3KGPCB edge3mm，can be custom-made base on needPCB bending ＜5mm or 3% of PCB Diagonal lengthPCB component heightTop：35mm，Bottom：35mmAdjustable,can be custom-made base on needXY driving systemAC servo motor, precise ball screwXY moving speedMax：830mm/sXY positioning accuracy≦8um General parameters Machine dimensionL980 * W980 * H1600 mm PowerAC220V，50/60Hz，1.2KWPCB height from ground900±20mm Machine weight600KGSafety standardCE safety standardEnvironment temperature and humidity10～35℃，35～80％ RH(non condensing) OptionalconfigurationMaintenance station, offline programming system, SPC servo, bar code system

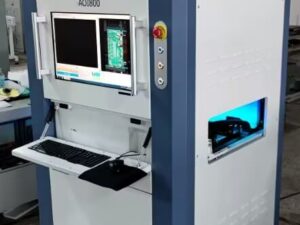

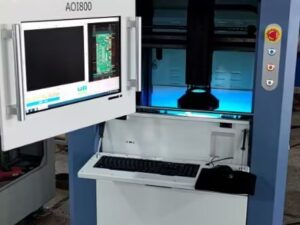

Read more: AOI800 Vision system Automated Optical Inspection AOI machineWhat is SMT in engineering?
Surface mount technology is a part of the electronic assembly that deals with the mounting of electronic components to the surface of a PCB. Electronic components mounted this way are called surface-mounted devices (SMD). SMT was developed to minimize manufacturing costs while making efficient use of board space.Qihe SMT company develops and produces all kinds of SMT equipment suitable for world wide market, including pnp machine,reflow oven,stencil printer,pcb handling machines,and other products.Small desktop pick and place machine TVM802A,TVM802B,TVM802AX,TVM802BX series suitable for beginners, for hobbiest or low vol usag.Advanced level 4-head LED strip placement QL41 led machines and with rail universal series TVM925S,TVM926S,Fully automatic 6-10-head placement QM61,QM62,QM81,QM10,machines, which are suitable for high volume mass production in factories.
