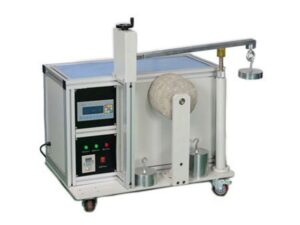

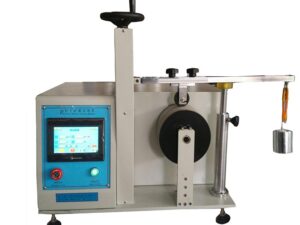

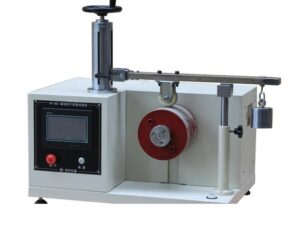

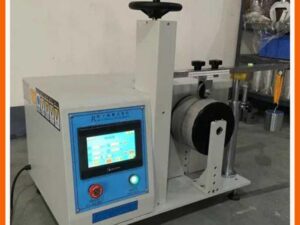

Luggage Wheel Abrasion Test Machine, Suitcase Wheel Wear Resistance Tester
Model
NG-343
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Product Application
Luggage Wheel Wear Test Machine is used for the wear test of small wheels, such as traveling box, roller skates, children’s cars, wheelbarrows, wheels, and wheels bear a load at the same time. This way is used to simulate the loading of the traveling box wheels on the ground, so as to test the wear resistance of wheels. The wear resistance and overall structure of the wheel material can be measured without wear and deformation. The results of the test can be used as a reference for improvement.
Specification
Model
NG-343 Luggage Wheels Abrasion Fatigue Tester
Control mode:
Color touch screen (convenient and practical)
Test load bar length:
610mm
The carrier is located at the end of the load bar:
430mm
Heavy hammer walking distance from the weight bar right:
20mm
Test speed:
0-5km / hr.
Wheel load:
10,20,30,50kg.
Weight:
Approx 90Kg;
Standard
QB / T2917-2007 etc
