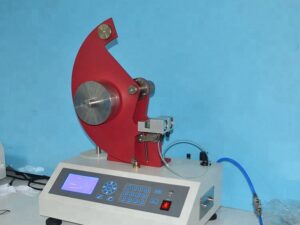

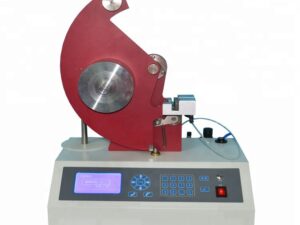

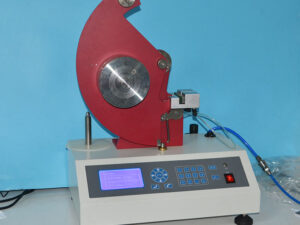

Elmendorf Tearing Strength Tester, Electrical Tearing Strenght Testing Machine
Model
NG-304
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Application
Digital Fabric tearing testing machine is used to measure the tearing strength of all kinds of woven fabrics. It can also be used to measure the tearing strength of thick paper, plastic cloth and electric rubber cloth.
Related standards :
GB/T3917.1, FZ/T60006, FZ/T75001, ISO1974/9290, ASTM d1424/5734, etc.
Technical Parameter:
Measuring range:0~16N, B.0~32N, C.0~64N
2.Test accuracy: less than or equal to 0.2% F·S
3.Tear length :43mm
Incision length :20 + / – 0.1mm
Sample size :100 * 63mm
Sample clamping: pneumatic
Power supply :AC220V 50Hz, 100W
Dimensions :500 * 440 * 690mm
Weight :About 40Kg(after packing)
Instrument features:
This machine adopts single chip microcomputer for data detection and processing, pneumatic component execution process control, large LCD lattice display prompt operation procedure and display test data.With serial port and parallel port output, the inspection report can be output through the printer and on-line with the computer.This machine has the characteristics of high precision, high automation, powerful function, reliable performance and simple operation.
Instrument characteristics:
Advanced calculation method (potential energy method) ensures accurate test and good repeatability.
Micro-control system, automatic test, calculation and analysis results, printing test reports and uploading test data.

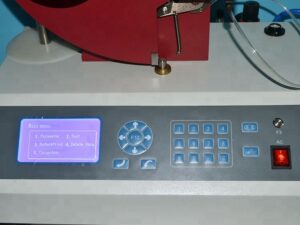

Humanized control system, Chinese and English operation interface, simple and convenient operation, all keys are function soft keys, and the operation panel is simple and clear.
Free access to all data and statistical results within the host.
The test unit can choose N, gf, cN and cP and automatically convert them to meet the requirements of different standards.
Pneumatic sample clamping and pendulum release to ensure the same clamping force and reduce operating strength.
7. Make the sample incision automatically to ensure the consistent shape of the incision and reduce the operating intensity.
