Specification
Features
A fast and inexpensive method of wire stripping.
Removal of enamel coating from copper wire with fine adjustment for small wire diameters
Wire range
0.4 mm max
screw – adjustable aperture (hole size)
In-feed Length
2.7mm (how close the machine can strip from coil body)
Package Includes
Fibreglass abrasive wheel to remove wire enamel
Application
Winding wire – enamel coating removal
Stripping
Single wire only.
Mounting
On rubber feet making storage simple
Power
AC 220 / 240 V ± 10%, 50 – 60hz
Dimensions
230 L * 160 W * 195 H (mm)
Net weight
7.5 kg
CE cert.
No.AE9955093 01
Stripping Wheels:
Size
Recommended Stripping Range
S02-1
0.18mm to 0.40mm
S02-0
0.03mm to 0.16mm

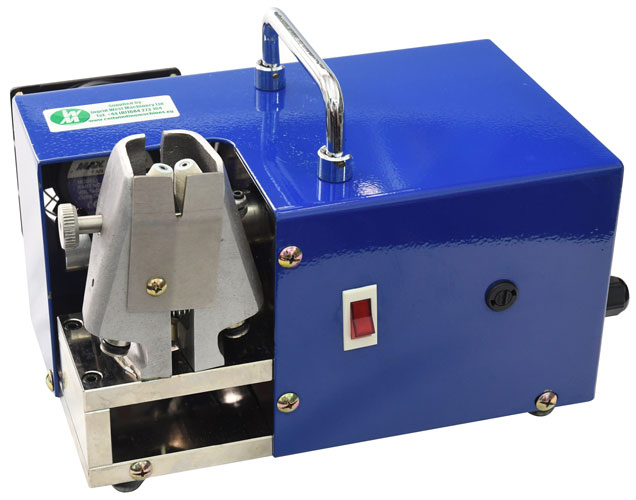

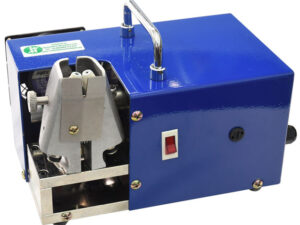

enamel winding wire stripper
Click for larger image

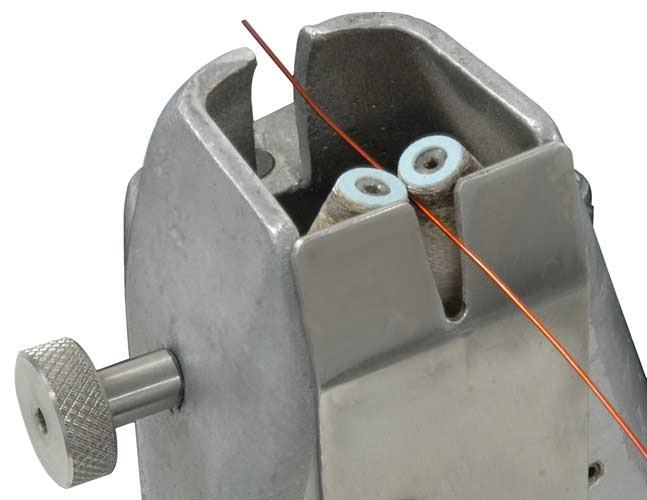

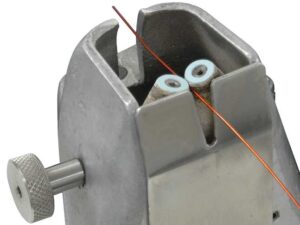

Machine head
Machine head
Machine to automatically strip enamel insulation coatings and laquers from copper winding wire and magnet wire.
This wire stripping machine uses a pair of rotating abrasive wheels to remove the coating. The machine is provided with a fine adjustment mechanism, and is ideal for stripping small sized round wires.
