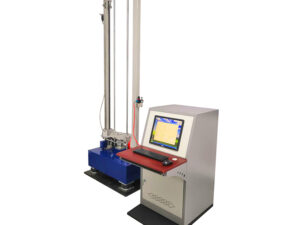

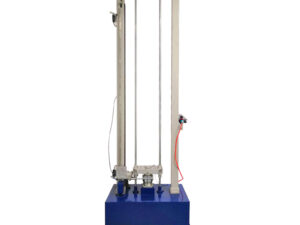

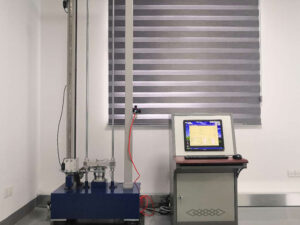

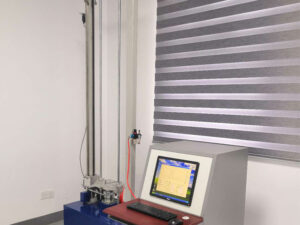

Acceleration Mechanical Shock Tester, Board Level Drop Impact Testing Machine
Model
NG-HAS10
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
This Acceleration Mechanical Shock Test System has advanced design, reliable work, convenient operation and reasonable price. It is an environmental test equipment for evaluating the reliability and structural integrity of the test piece after being impacted.
It has fully digests and absorbs the advantages of the impact test benches of MTS and Yoshida Seiki of Japan. The appearance is more refined and beautiful, the vibration damping device is more scientific, and the work reliability is high. It is suitable for aviation, aerospace, shipbuilding, Products in the ordnance, electronics, automobiles, home appliances and transportation industries provide test equipment for the impact resistance of their products
Standards:
GB T2423.5 / IEC 60068-2-27: Environmental testing — Part 2: Test Methods — Test Ea and Guidance: Shock
GJB150.18: Environmental test methods for military equipments: Shock test
IEC68-2-29: Test Eb and guidance:Bump
JJG497-2000: Verification Regulation of Bump Testing Machines
JESD22-B111: Board Level Drop Test Method of Components for Handheld Electronic Products
ETC
Advantage:
※ Digital setting of impact height: The impact table is automatically raised to the set height, with high control accuracy and good repeatability of impact data.
※ Waveform generator can be optional: half-sine wave generator is standard configuration, trapezoidal wave, rear peak sawtooth wave generator can be configured.
※ The impact table adopts centrifugal casting process, the trunnion and the work table are integrated, and the impact energy transfer ratio is maintained at 1:1.
※ The precision acquisition system adopts photoelectric displacement sensor, which has high precision of table top and good repeatability of impact index.
Main Parameters:
Impact Test Machine
Maximum load
10kg
Table test size
200mm×220mm
Pulse Duration time
1ms～20ms
Acceleration range
15~1000g
Waveform
Sinusoidal half-wave
Impact Control Measurement Analyzer
Input channel
Input channel
1 charge input channel
Sampling frequency
Max 192kHz
Coupling method
Built-in charge amplifier
Pulse width
0.5 ms～1000ms
Acceleration range
10000g
Support standard
IEC；GJB150；GJB360；GB2423；MIL-STD-810 etc
Output channel
Output channel
1 charge output channel
Voltage range
±10V
Electrical parameters
Power Supply
AC 100～240V
Power
20W
Communication Interface
USB2.0
Operation System
Windows XP
Environmental parameters
Temperature and humidity
0 to 45°C; 10% to 90%RH, without condensation
