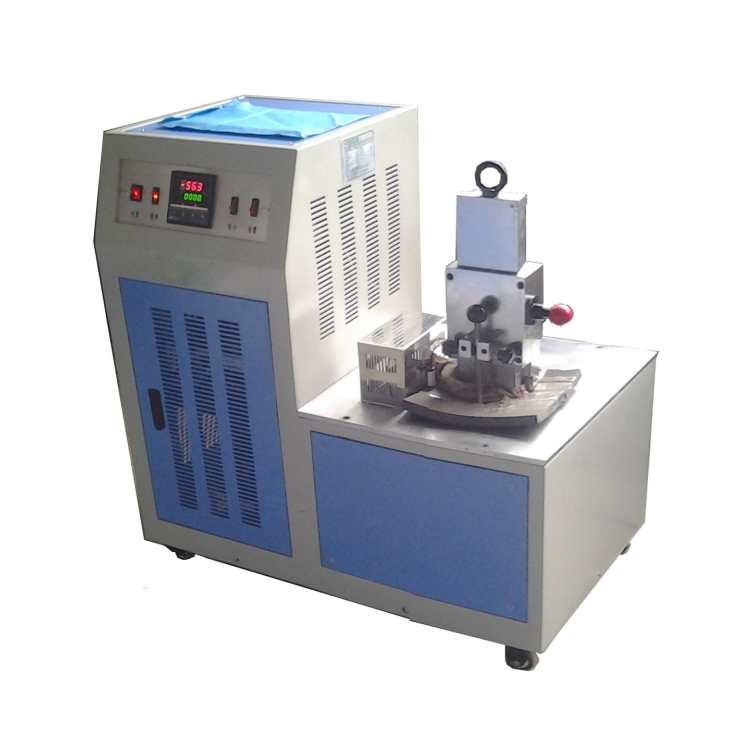

Rubber Low Temperature Brittleness Tester
Model
NG-3207
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Rubber Low Temperature Brittleness tester is used to measure the highest temperature when vulcanized rubber
is impacted to damage under special condition, and the temperature is called brittle temperature.
It is used to identify the different usability between non-rigid plastic and other flexible materials under low temperature conditions. It also can measure the brittle temperature and low temperature performance quality of different kinds of materials or different formula vulcanized rubber. So no matter in the scientific materials and its
products quality inspection, production process control, etc are indispensable.
Standard:
ISO 812 ISO 974 ASTM D2137, GB / T 1682-82, GB / T 15256-94 etc
Features:
The core components using fully enclosed compressor and control protection system for low-temperature test to provide a reliable guarantee;
Equipped with type A and type B impact device, to meet different customer needs;
Test temperature digital settings, digital display, with automatically alarm function for temperature reach;
Convenient operating system, eye-catching display.
Can test 10 A type or 5 B type sample at one time
Specifications:
Temperature range
-70℃~0℃
Temperature fluctuation
<±0.5℃
Temperature resolution
0.1℃
Temperature accuracy
±0.5℃
Test speed
2m/s ±0.2m/s
Impact head radius
R1.5 ± 0.1mm (single sample method),
R1.6 ± 0.1mm (multi-sample method)
The distance of impactor center to holder bottom
11 ± 0.5mm (single sample method),
8 ± 0.3mm (multi-sample method)
Power supply
AC220V, 50Hz, 1000w
Dimensions
720×700×1380mm
