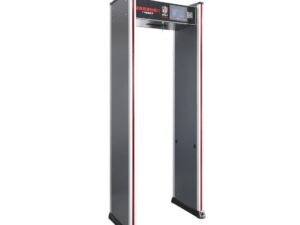

Summary:

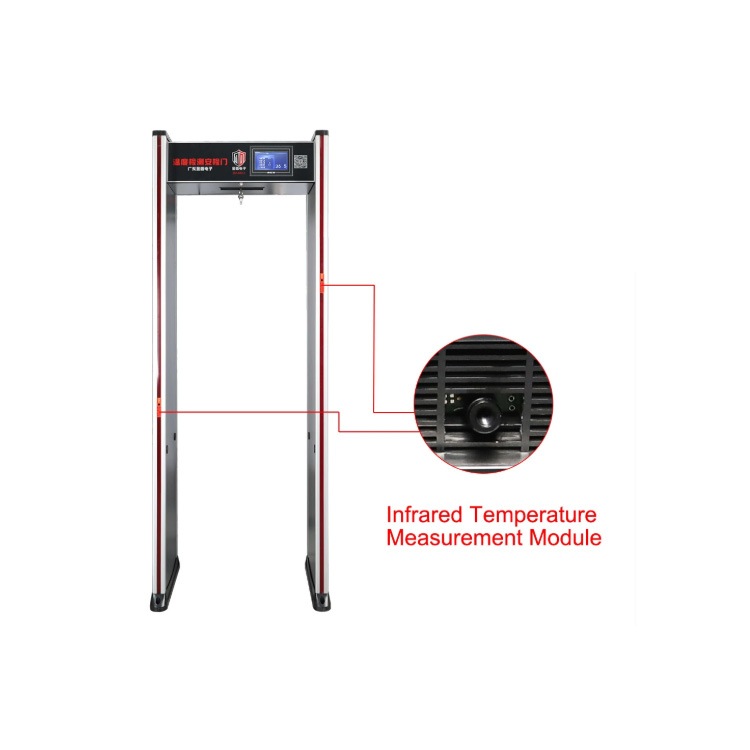

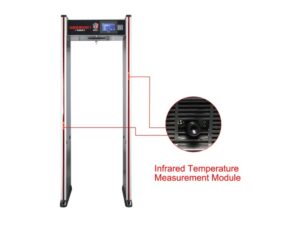

The Intelligent Temperature Detect Gate uses a high-precision infrared temperature sensor with a
sensing distance of 0.5-1 meters. It has high precision and high resolution and is immune to the
environment and sunlight. The measurement error at room temperature is ± 0.5 ° C, and the resolution
is 0.02 ° C. Theinitial temperature setting is 37.3 ° C (adjustable). The actual body temperature of the
human body is displayed when the detection door is in operation. An alarm is issued when the
temperature exceeds 37.3 ° C.
Non-contact initial screening for abnormal body temperature, fast detection speed, can prevent personnel

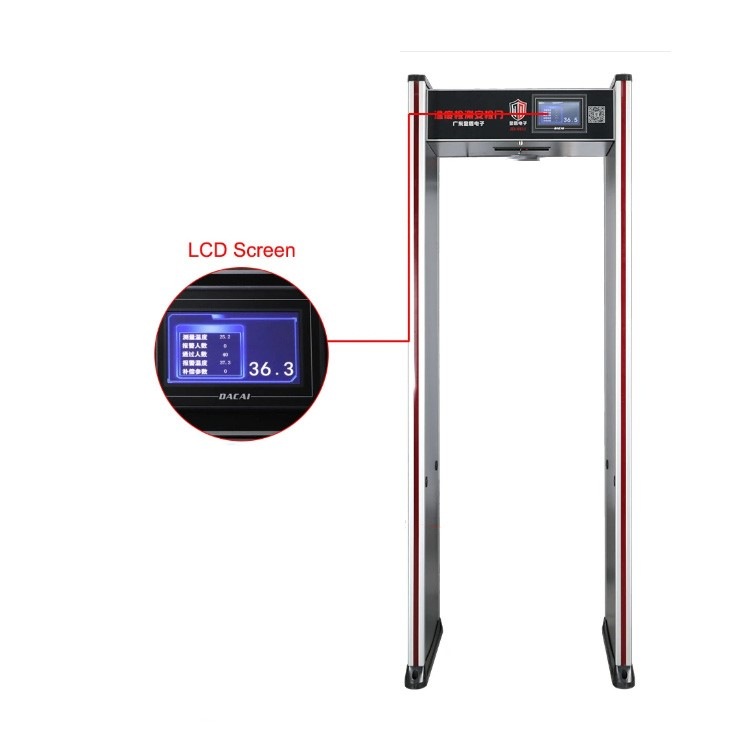

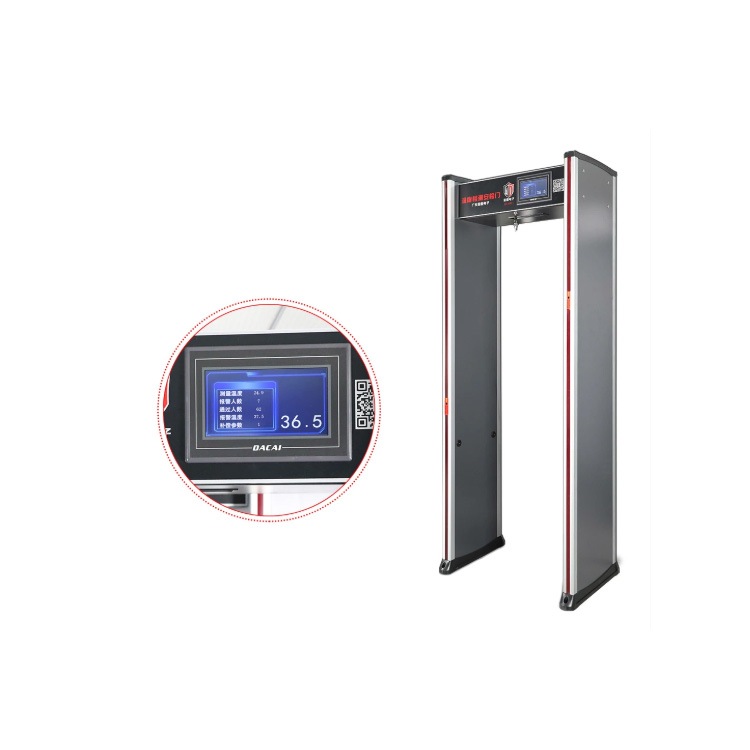

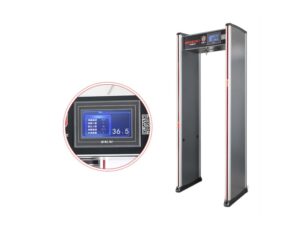

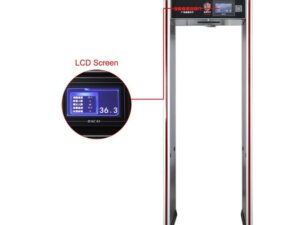

contact with cross-infection.It has a 7-inch LCD screen, which can display the information of measuring temperature, alarm temperature, alarm times, number of people passing through, compensation parameters and so on.
Features:

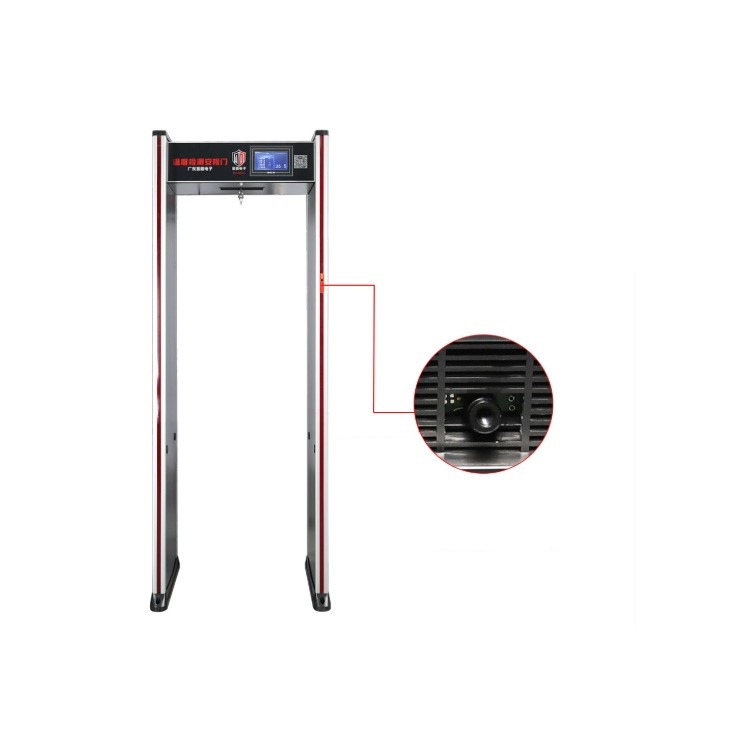

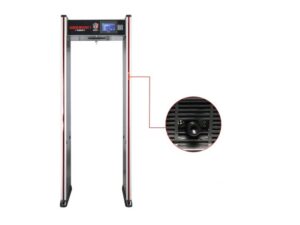

TWO Sensors Non-contact temperature scanner: about 10-15 cm away from the probe, and the forehead/wrist temperature can be detected.
Six Metal Detect zones, and suspicious objects can be accurately displayed in correspondence.
LED Display doorpost light can display alarm zone visually and sound and light alarm at the same time.
High sensitivity:a piece of coin metal can be detected, and the influence of belt buckles, leather shoes, bras can be ruled out, and more than 200 grams of copper, aluminum, zinc and other metals or controlled knives and guns can be detected.
Additional functions: optional remote control can be used to control parameters, reserve switching signals, and can be connected to computers, cameras, three rollers, etc.
Harmless: Harmless to cardiac pacemaker wearers, pregnant women, and magnetic media.
Specifications:
Item
NG-8811 Infrared Human Body Temperature Scanner
Detection distance
Forehead, wrist 5-15CM
Temperature measurement range
30℃～42℃
Minimum resolution
0.1℃
Temperature measurement module
MELEXIS
Temperature measurement accuracy
±0.5℃（Indoor Temperature）
Repeat accuracy
±0.2℃
Response time
0.1S
Measure time
0.5S-1.5S
Display
7 inch color touch screen
Working environment
-10℃─35℃
External power
220V 50Hz
Tunnel Dimension
2000(H)) x 700(W) x 550(D) mm
Whole Dimension
2202(H) x 820(W) x 550(D) mm
