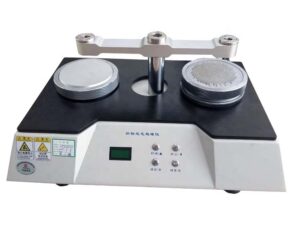

Fabric Circular Locus Pilling Tester, Circular Trajectory Method Tester
Model
NG-530
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
The Circular Locus Pilling Tester is used for determining the pilling and fuzzing of all kinds of fabrics to evaluable the product quality and process, such as wool, chemical fiber, mixed, kitted and woven fabrics.

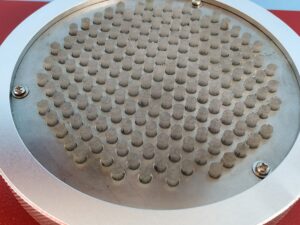

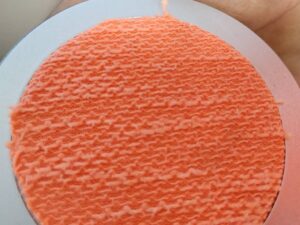

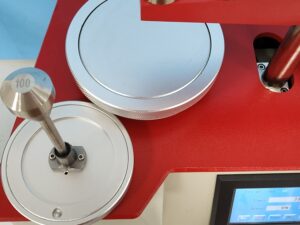

Using an active friction system, fabric is rubbed against a nylon brush and abrasive or an abrasive only under controlled conditions. Results of the test are achieved in minutes. The relative motion of the locus specimen grip and the abrasive platform is a circle with a relative speed of 60+/-1 r/min. The grip offers pressure to the specimen which is adjustable with a tolerance of +/-1%. For added control and safety, the machine is equipped with a self-stop switch.
Standards
GB/T 4802.1-2008
Specifications:
MODEL:
NG-530
Test motion:
Circular Locus of Dia. 40mm
Test speed:
60 ± 1 r/min
Height of Brush:
2 – 12mm, adjustable
Pressure on specimen:
490cN, 590cN, 780cN,
Dimension of specimen:
Dia 113±0.5mm (100cm2)
Counter:
1 – 9,999 times, stop automatically
standard:
GB/T 4802.1-2008
Power:
220 V 50/60 Hz
Weight:
45kg
