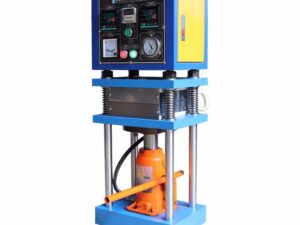

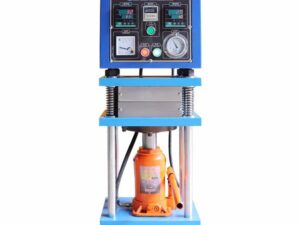

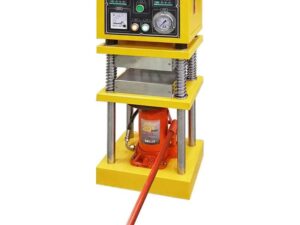

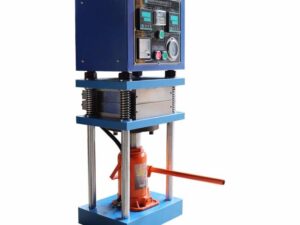

Manual Small Rubber Platen Vulcanizing Press Machine
Model
NG-3217
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
The Manual Rubber Platen Press Machine is mainly used in rubber and products, plastics and products PVC, pigments, masterbatch, stabilizer, and other industries. Its main purpose is to test the change and comparison of the physical properties of raw materials after molding. Such as: the gloss of the surface of the material after molding, whether there are black spots, its strength, hardness, and plasticity after adding auxiliary materials.
Principle:
Put the test material in the mold, and place it in parallel between the heating platens of this product, and apply a certain temperature and pressure to shape the experimental material for production reference.
Applicable Range:
Universities and research institutes: Research and development of new materials, teaching use, formula comparison and improvement.
Rubber industry: Vulcanization with vulcanizing agent.
Plastic industry: Detection of press proofing, fisheye, black spots, stains, etc.
Pigment industry: Tablet pressing and comparison film.
Stabilizer chemical industry: Tabletting, testing strength, hardness.
Specifications:
Capacity
30T (Can be customize)
Temp. Range
Room temp. ~300℃
Temp. Controller
LED Indicator,press key set input, the value indicate output
Timer
LED display,time range 0.1S~99min~9.9hr
Heating type
Heating tube heating
Pressure plate size
220*220mm
Distance of pressure plate
0~70mm
Pressure material
High-quality alloy steel (corrosion resistance, high temperature resistance, uniform heat conduction)
Pressure surface
Mirror chrome plated
Working layer
One layer (heating layer)
Pressurized oil cylinder
Jack, manual pressure
Oil cylinder speed
9mm/s
Power
4kw
Power supply
AC220V 50/60hz
