Specification
Program
TWC-01 digital controller holds up to 999 program steps
Control
DC 400 W spindle motor with stepper motor for core rotation
Features
Choice of Belt or Slider winding heads available in 8 inch shuttle diameter
Package Includes
base, core rotator, winding head, your first shuttle, and comprehensive manual
Wire size
0.3 – 1.2 mm (depending on machine head type and shuttle size)
O D Range
40 – 120 mm
Min finished I D
12 mm (depends on shuttle size & core height)
Min wire size
depends on shuttle size and head type
Max speed
1200 rpm (depending on winding head)
Power
AC 230 / 110 V ± 10%, 50 – 60hz
Dims
770 x 690 x 550 mm
Net weight
80 kg
CE cert.
no.AE9955093 01
Click for larger image

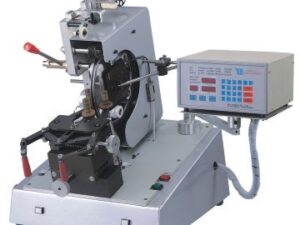

The WH-900a is a digitally controlled toroid winding machine, ideally suited to the manufacture of toroidal power transformers, isolation transformers, inductors and chokes of up to 120mm finished outside diameter
The machine can be equipped with either 8 or 12 inch winding heads, both of which are available in belt or side slider versions.
The machine features automatic control over wire load length, running speed, acceleration and de-acceleration, etc, and programs for complex windings are stored in memory for later use. The advanced fibre optic wire detection system includes a teach-in function for accurate and reliable turns count, even with coloured wires.
