Summary:

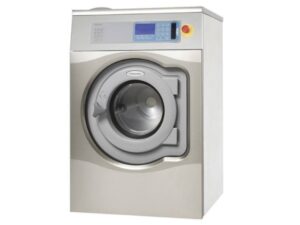

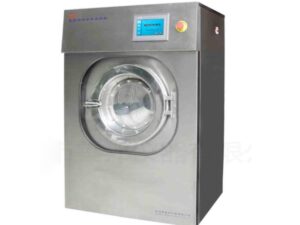

The Fabric Automatic Fabric Water Shrinkage Tester is used for testing the shrinkage and relaxation after washing of various textiles such as cotton, wool, silk, linen, chemical fiber, knitwear, costume etc. It is fit for the factory and testing center with the long-term test.
Standards：
EN/ISO-6330-2012, ISO 5077, IWSTM31, BS4923, EN25077/26330, JISL1909, FZ/T70009.
Features :
The apparatus used are for industrial design, suit to the harsh long continuous testing requirements
Suspended inner canister exclusive used, smoothly operation without vibration
Include 12 groups washing programs, users can prepare 6 groups their own shrinkage procedures, and provide programs storage
Variable frequency control technology used, to protect the electrical safety and the smooth operation.
Large touch screen display, figures show clearly
Using high-precision pressure sensors, to ensure that accurate and reliable water level.
Outside and inside fully use stainless steel.
Technical parameters:
Category
Horizontal roller type, front door feeding mode
Inner layer roller
Diameter : 520±1mm
Depth: 315±1mm
Inner & outer roller gap
2.8cm±0.1cm
Lift vane quantity
3 PCS 120° even distribution
Lift vane height
53mm±1mm
Rotation action
Normal On: (12±0.1)S, Normal Off (3±0.1)S
Mild On: (8±0.1)S, Mild Off (7±0.1)S
Gentle On: (3±0.1)S, Gentle Off (12±0.1)S
Soft: clockwise rotation (3±0.1)S, stop (12±0.1)S
anticlockwise rotation (3±0.1)S, stop (12±0.1)S
Rotation Speed
Wash: (52±1)r.p.m
Low Spin : (500±20)r.p.m
High Spin: (800±20)r.p.m
Water level control
Low level:10cm , High level:13cm
Fill water time
< 2min (water in high level 13cm
Drainage duration
< 1min (water in high level 13cm)
Setting range to water temperature
Room temperature to 99℃ (accuracy: ±1℃)
Heating power
5.4kw
Washing capacity
5kg
External Dimensions
850mm×750mm×1200mm
Weight
140Kg
Power source
Three-wire four-phase 380V±10% 50Hz
