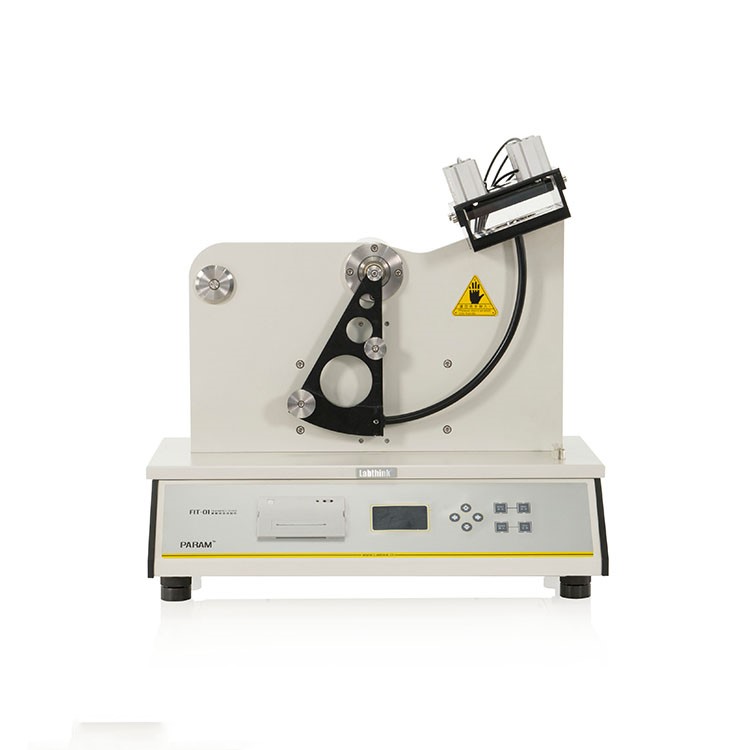

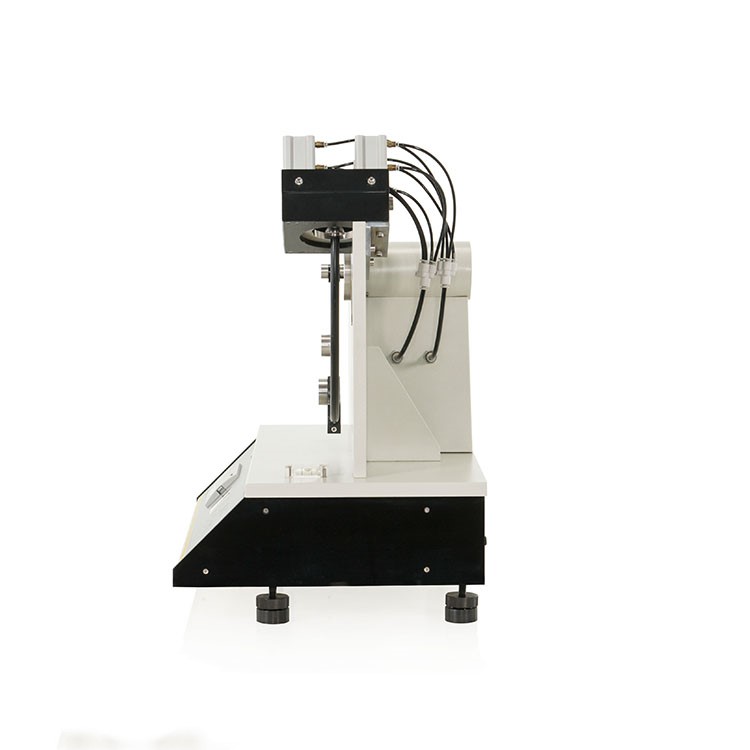

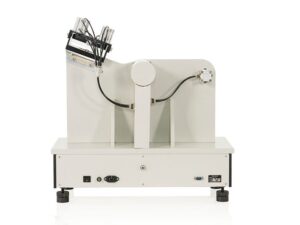

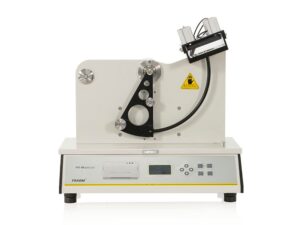

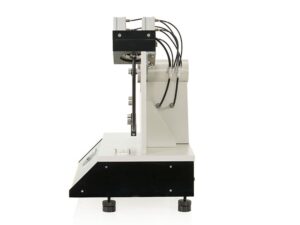

Plastic Films and Sheets Pendulum Impact Resistance Tester, Pendulum Penetration Resistance Tester
Model
NG-611
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Summary:
Film Pendulum Impact Tester is professionally applicable to the determination of impact
resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials.
Principle：
The impact resistance of films could be obtained by measuring the energy consumed by hemispheric impact head to make films ruptured, under the certain impacting conditions.
Application:
Basic Applications
· Including plastic films, sheets and composite films e.g. PE/PP composite films, aluminized films, aluminum plastic composite films, nylon films for food and drug packages
· Including paper and paper board, e.g. aluminized paper for cigarette packages and Tetra Pak materials
Extended Applications
· Test range could be extended to 5J
Standards：
This instrument conforms to various national and international standards:
GB 8809-88, ASTM D3420, NF T54-116
Features:
Adjustable range and electronic measurement support various combinations of non-standard test conditions
Pneumatic specimen clamping, pendulum release mechanism and horizontal adjustment system effectively reduce the errors caused by manual operation
The system provides automatic statistics of testing data for users’ convenient viewing
The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
Specifications:
Impact Energy
1 J, 2 J, 3 J (Standard)
Resolution
0.001 J
Impact Head Size
Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization is available)
Specimen Clamp Diameter
Ф89 mm, Ф60 mm
Specimen Size
100 mm x 100 mm or Ф100 mm
Gas Supply Pressure
0.6 MPa (outside of supply scope)
Port Size
Ф6 mm PU Tubing
Instrument Dimension
600 mm (L) x 390 mm (W) x 600 mm (H)
Power Supply
220VAC 50Hz / 120VAC 60Hz
Net Weight
64 kg
