描述
Items
Plastic, Polymers Materials Tensile Testing Machine
Capacity
20, 50, 100, 200, 500, 1000, 2000Kg
Unit
G, KG, N, LB can be exchanged
Accurate Grade
0.5grade
Display Device
PC
Resolution
1/250,000
Effective Accuracy
±0.2%(0.5grade)
Max.Stroke
800mm (Column height 143cm)
Speed Range
0.01-500mm/min (adjustable )
Motor
Servo Motor + High Precise Ball Screw
Elongation Accuracy
0.001mm
Power
AC220V, 50/60HZ(custom-made)
Standard Accessories
Tensile clamp, Computer system, English software CD,
User manual
Plastics, polymers and composites can be tensile tested to measure product quality. Tensile tests measure the load required to break a plastic test sample and specimen stretch or elongation to that breaking load. The resulting test data helps specify materials, design parts to withstand forces, and key quality control checks for materials. Plastic composite tensile test equipment, testers and electromechanical universal test machines feature constant rate of crosshead extension or CRE because plastics tensile test behavior is time rate test speed dependent. Plastic tensile coupons (dogbone-shaped specimens with defined width and load stress psi) are made to ASTM, EN, DIN and ISO tensile test sample dimensions. Plastics composite tensile tester machine speed should always rely on standard specifications. Plastic tensile test standards ASTM D638 and ISO 527 both require axial extensometers to measure strain below 20 percent extension values. High travel or strain can be measured by the machine crosshead or digital encoder. Thin film sheet samples should follow ASTM D882.
Applicable Testing Standards
• ISO 527 – Tensile Test of Plastics Composites
• ASTM D638 Tension Testing for Plastics
• ASTM D882 Tensile Testing for Thin Plastic Sheeting
• ASTM D3039 Tensile Testing for Advanced Composite Materials
ASTM D638 Tension Testing for Plastics
ASTM D638 is one of the most common plastic strength specifications and covers the tensile properties of unreinforced and reinforced plastics. This test method uses standard “dumbell” or “dogbone” shaped specimens under 14mm of thickness. A universal testing machine (tensile testing machine) is needed to perform this test.
Test Procedure:
1. Cut or injection mold your material into one of the five “dumbbell” shapes. The exact shape you use is dependent upon your material’s rigidity and thickness.
2. Load the specimen into tensile grips.
3. Attach the extensometer to the sample
4. Begin the test by separating the tensile grips at a constant rate of speed. Speed depends on specimen shape and can range from 0.05 – 20 inches per minute. The target time from start of test to break should be from 30 seconds to 5 minutes.
5. End the test after sample break (rupture)

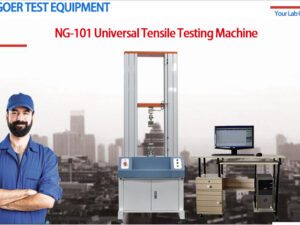

Recommended Plastic, Polymers Materials Tensile Testing Machine Our Model NG-101, Servo Universal Tensile Tester with Extensometer
Newgory factory Research and Development Prodessional Extensometer
Common Tensile Grips
Professional designed software. PC to view test results, analysis of data and graph
