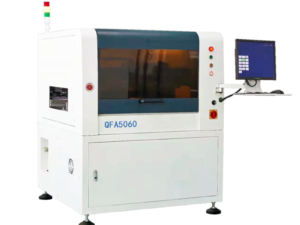

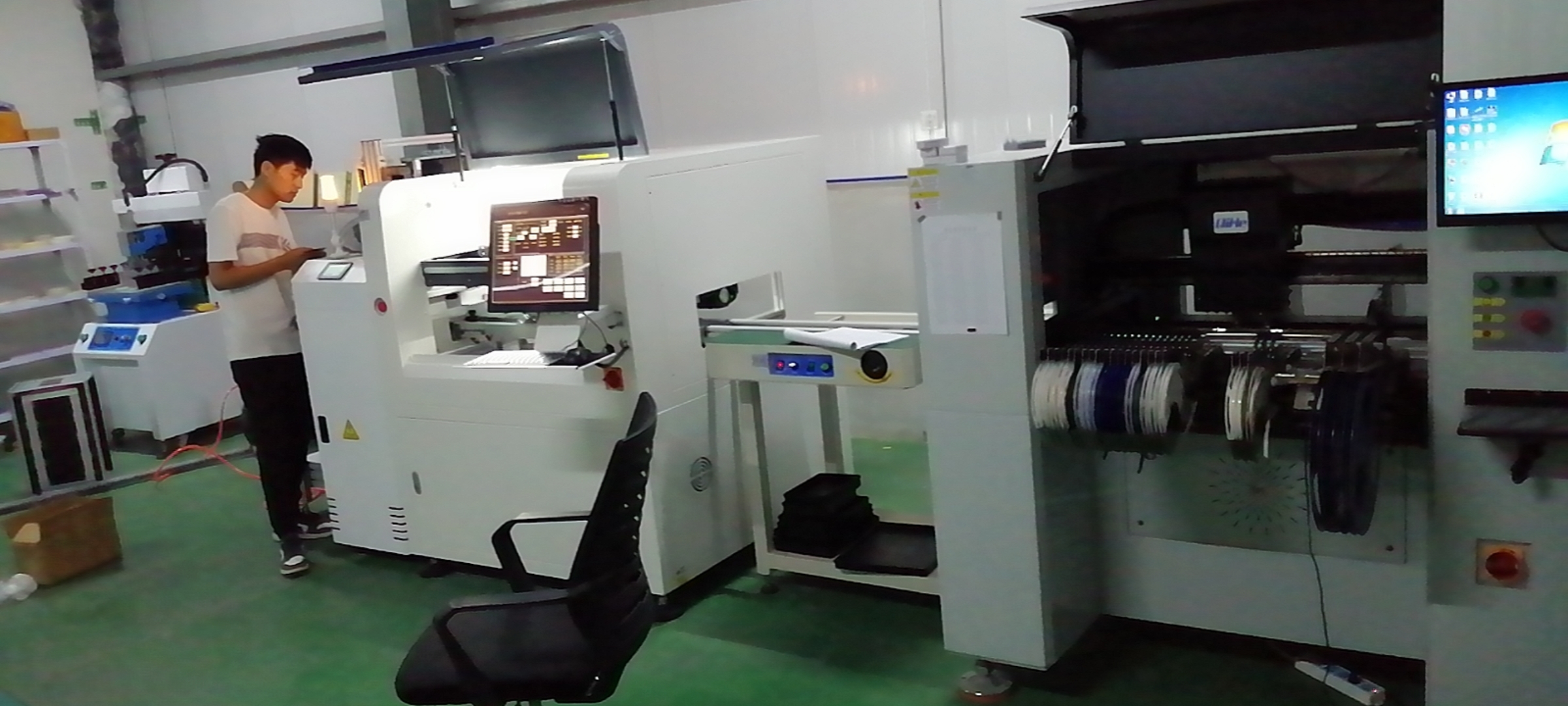

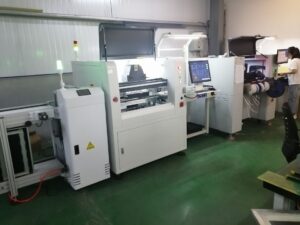

QFA5060 automatic solder paste printer stencil printer machine screen printer machine
Description
Inquiry
Description

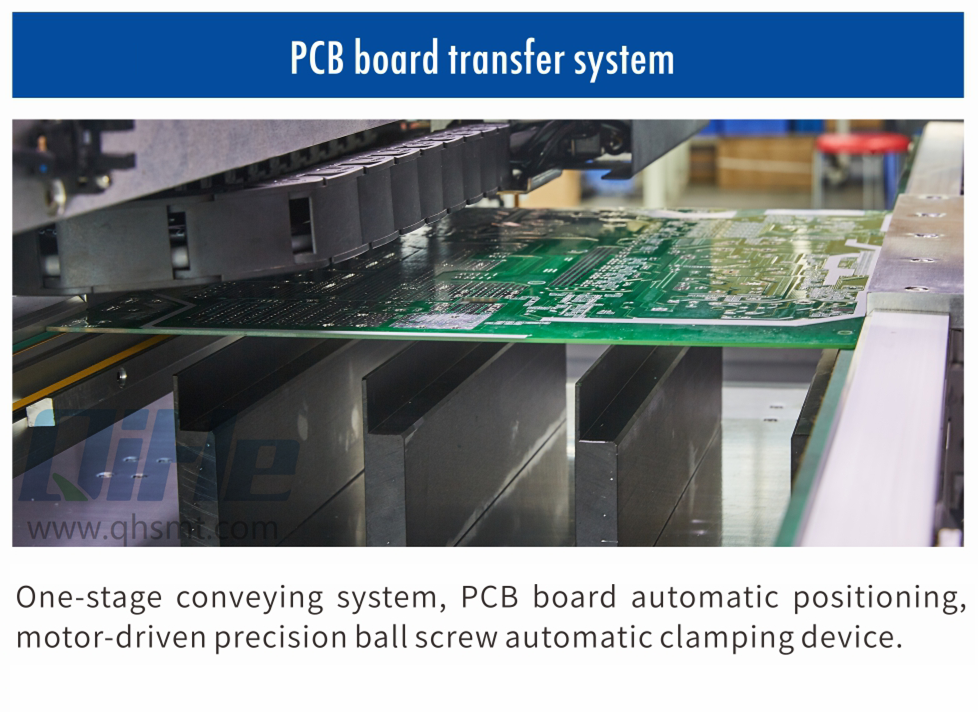

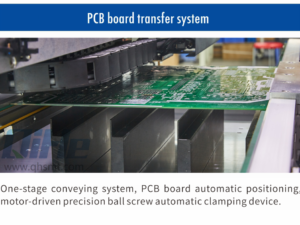

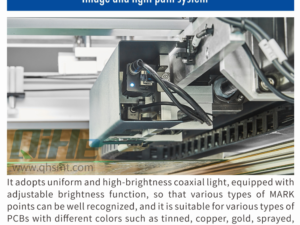

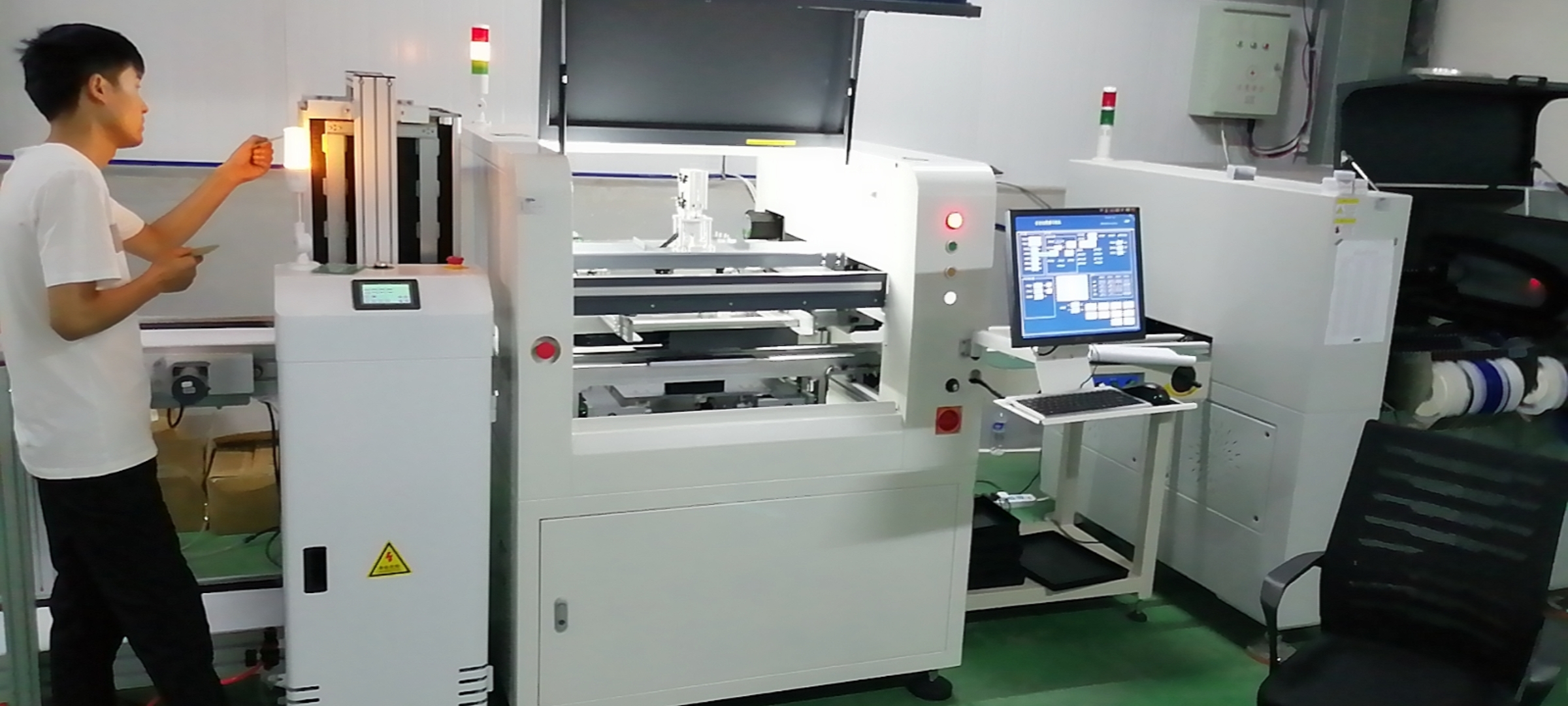

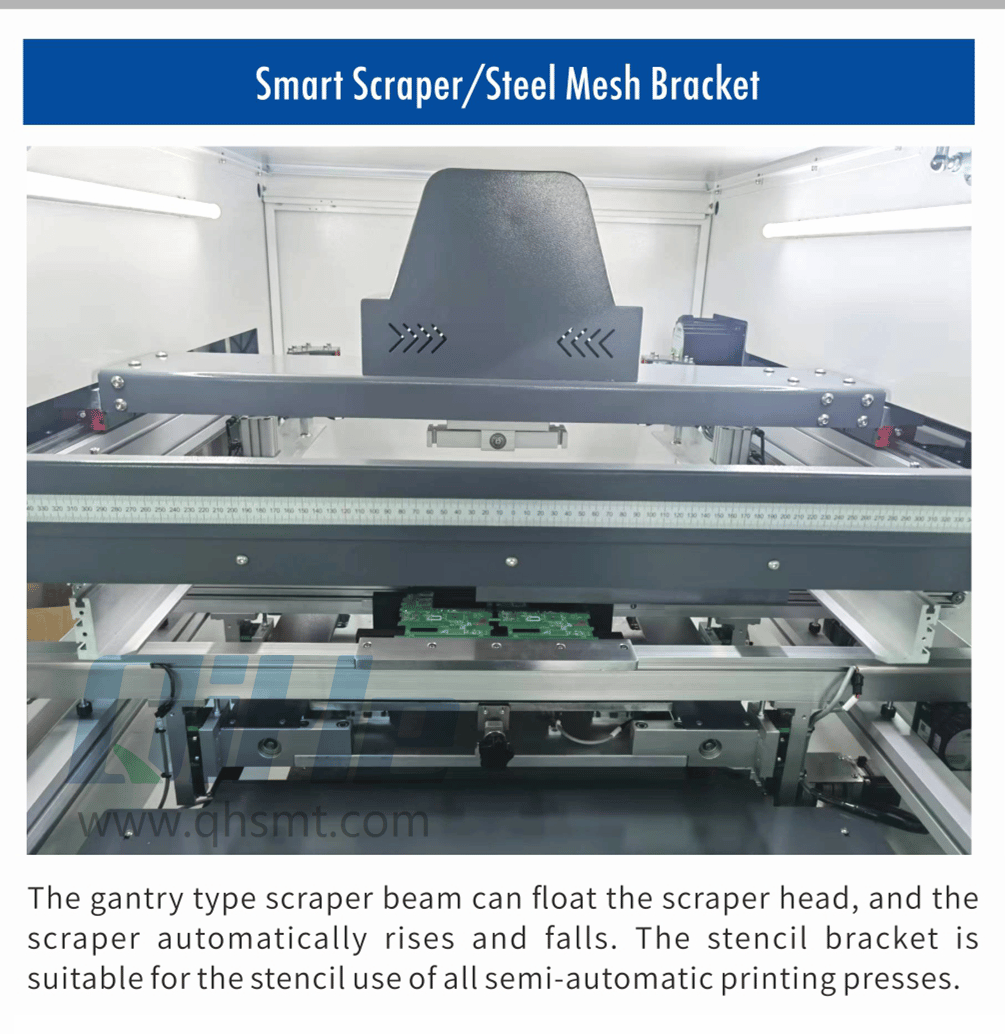

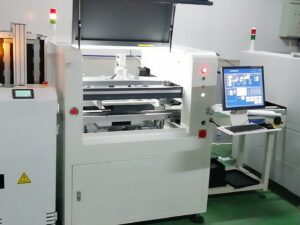

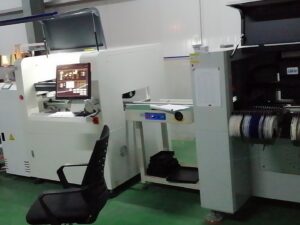

QFA5060 automatic solder paste printer (fully automatic vision solder paste printer) stencil printer machine screen printer machineThe whole machine is fully controlled by servo system.Automatic pressure feedback system.Multifunctional image processing system.Precise PCB transportation system.Intelligent PCB holding device.User-friendly operation interface.

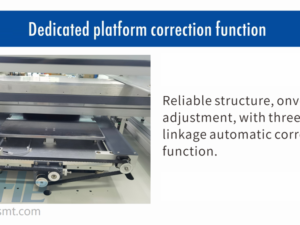

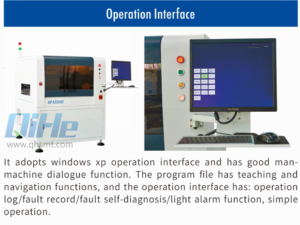

Parametersoperating systemWindowsXP operation interfacesignal connectionSMEMA connectorvisual parametersHigh-performance CCD and image processing systemRepeat printing accuracy±0.015mmPrinting accuracy±0.025mmprinting cycle<8s/block (excluding printing and cleaning time)Steel mesh size370*370mm~600*800mmScreen frame fixedair cylinderPCB sizeMin 50×50 mm , Max 600×400 mmPCB thickness0.4 ~ 6mmPCB weight≤3kgSupport methodMagnetic ejector pin, magnetic ejector pin, manual crimpingdelivery systemOne-stage conveyor systemTransmission directionLeft-right/right-left/left-left/right-right (software control)UVW platform adjustment rangeNot less than X: ±3mm; Y: ±7mm; e: ±2°PCB transfer height900±40mmPlatform adjustment angleZ:±2°Squeegee pressure0.5~10Kgdemoulding speed0~20mm/s adjustablescraper angleStandard 60°software updatefree software upgradesAir source4~6 Kgf/cm2main power supplyAC: 220±10%, 50/60HZ, 2.5KWDimensionsL1200*W1200*H1460Net weight435kgs
