Specifications can be modified according to customer requirements.
Max Wire Diameter & profile wire:
0.01 – 10mm
Max winding length:
800 mm
Max distance between points:
900 mm
Max Winding Diameter:
560 mm
Guider precision:
0.01 mm
Main shaft motor:
Servo – 15Nm at 3000 rpm
Guider motor (Brushless):
0.4HP / 300W (2.2Nm)
Winding shaft speed:
0 – 1,500 rpm / 0 – 3,000 rpm*
Electrical supply:
3 x 380Vca – 50Hz
Air supply:
6 bar
Net weight:
700 kg approx.
User interface:
10 inch (254 mm) colour touch screen
Max. No. of programmable windings:
1000 (unlimited with SD card)
Max. No. of windings per coil:
200
Type of programming:
CNC with colour touch screen
Torque and Speed
* There are two version of this machine, each having a four-ratio quick change gearbox.
Gear Position
1500 RPM version
3000 RPM version
Torque (Nm)
Max Speed (Rpm)
Torque (Nm)
Max Speed (Rpm)
1
26
1500
15
3000
2
39
1000
19
2000
3
156
250
78
500
4
234
166
117
330
Heavy duty coil winding machine series
Click for larger image

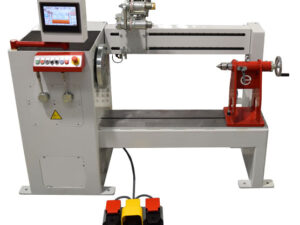

The E-900 is a powerful and compact one spindle floor standing coil winding machine with a colour touch screen CNC, precision servomotor drive, and four-ratio gearbox. The winding machine is robustly constructed in heavy gauge welded galvanised steel, with covers in stainless steel, and is provided with a fixture plate, tailstock with security closure, guider system, safety guard and foot pedal
The applications of this machine include the manufacture of medium sized coils, including solenoids, motors, inductors, and power distribution transformers, typically in the range of 10 to 600 KVA.
User-selectable speed ranges of up to 3,000 rpm allow fast winding with small wires whilst delivering high torque for winding heavy wires.
The colour touch screen provides a simple and intuitive programming system with graphical interface and on-screen help, allowing even the most complex windings to be programmed in short periods of time in the user’s choice of language. A foot pedal is provided so that the operator can control the machine manually if required.
Data storage is on a standard SD card, providing a quick and simple method of backing up programs on a PC.
