Summary:

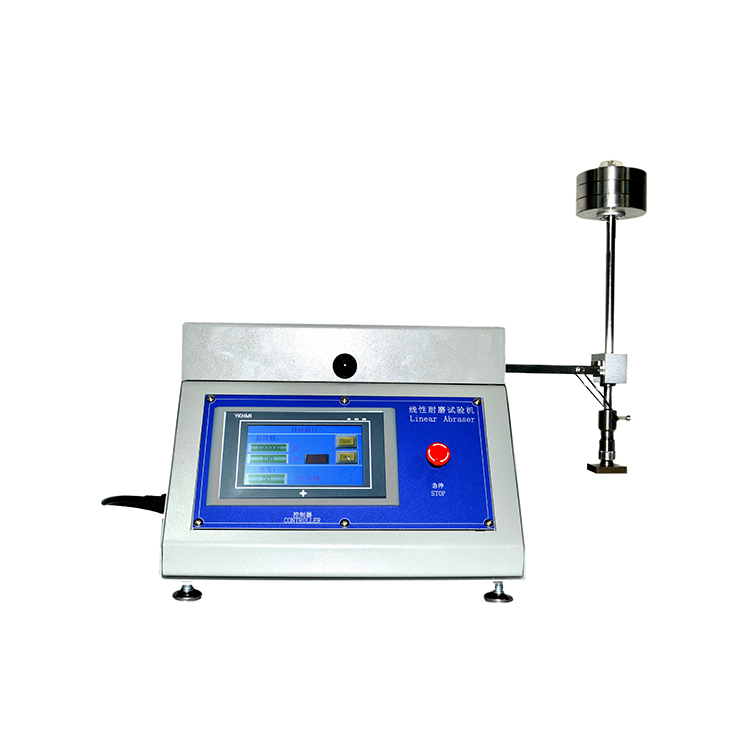

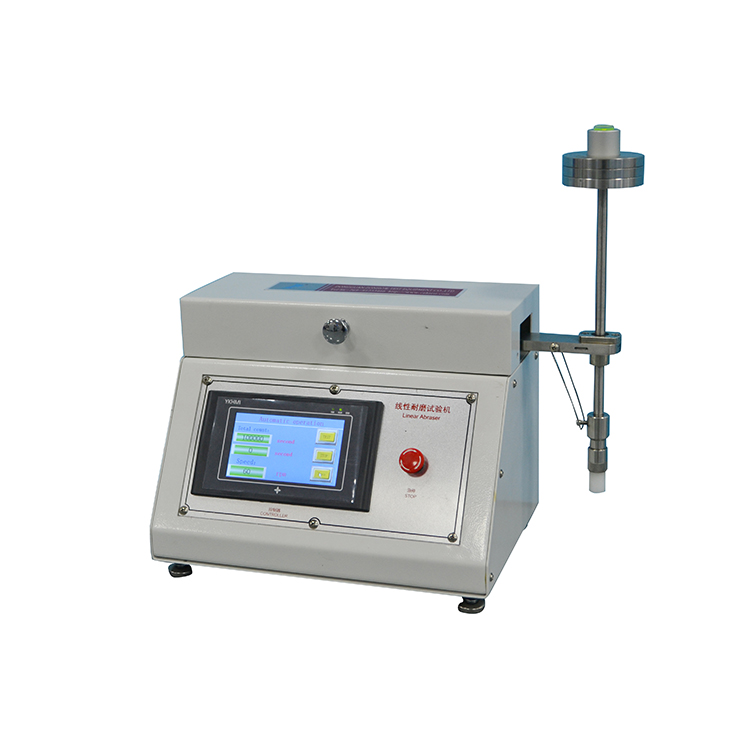

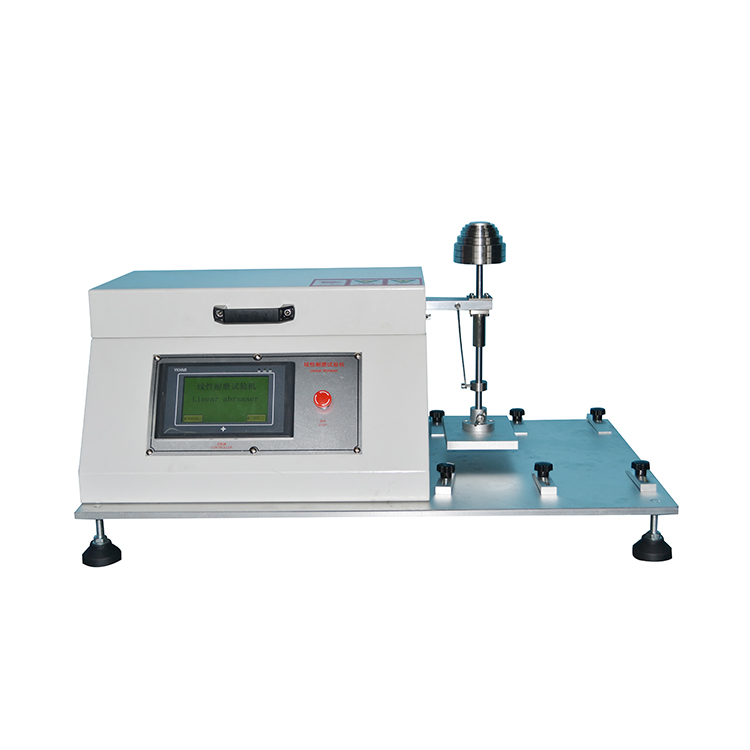

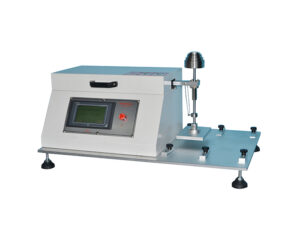

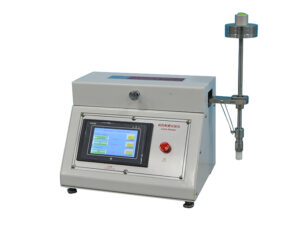

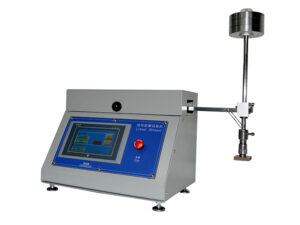

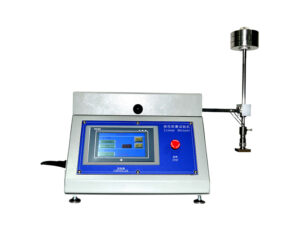

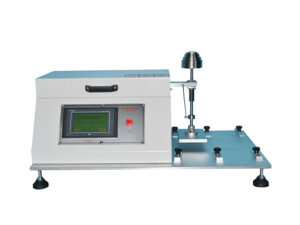

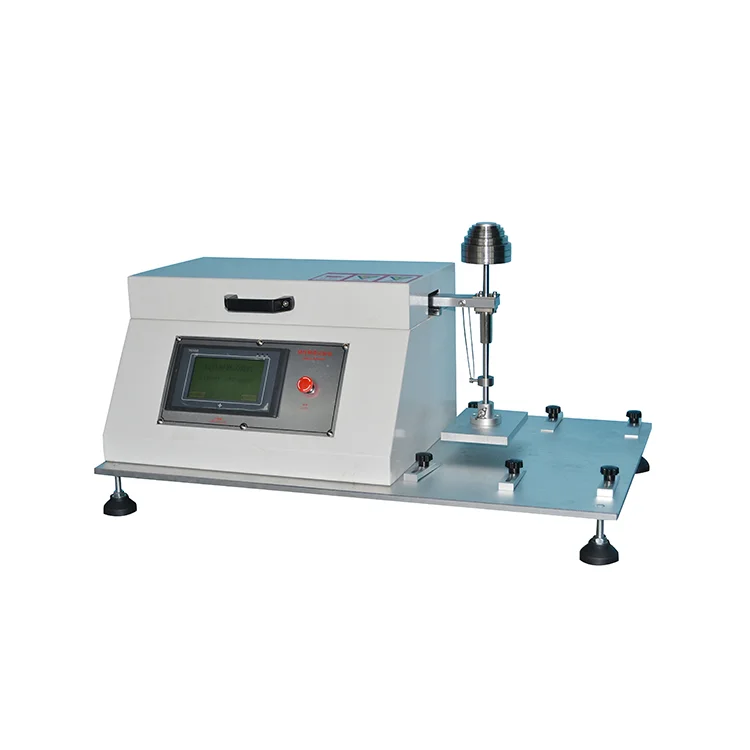

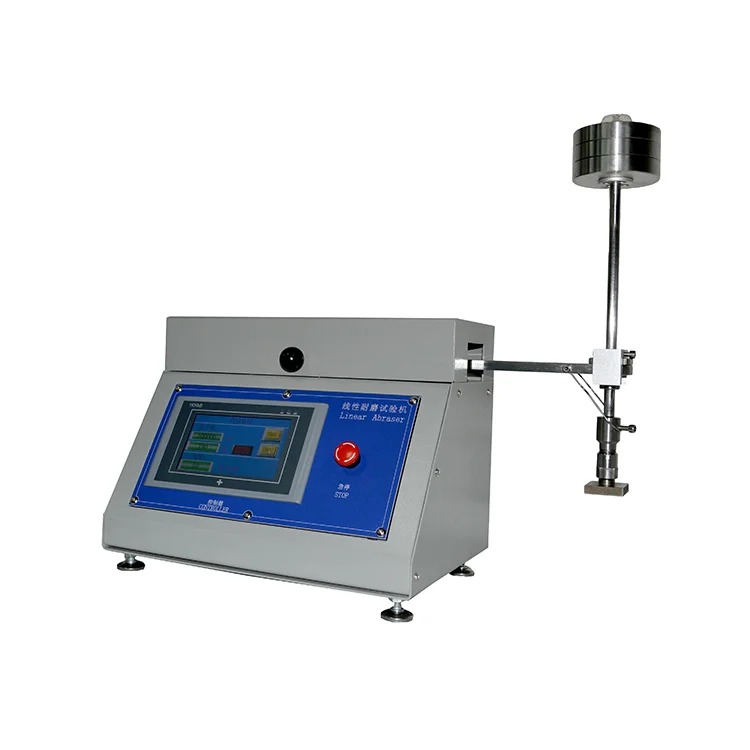

Taber Linear Scratch Abraser Tester, To evaluate the abrasion resistance, scratch resistance of products(single or multiple scratches) and the transitivity of color (Usually crocking resistance or rubbing fastness)and so on. And can do dry abrasion test, wet abrasion test
Applications:
Taber Linear Abrasion Teser is suitable for testing the wear resistance of plastics, auto parts, rubber, leather and textile, electroplating, free disassembly, paint, printing and other products.It can be used to evaluate the wear-resisting property of the products, and can be used for the single or multiple scratches and color transference of the affordable products.
Features:
Parameters such as moving distance, rotating speed, rotation number and load can be set (note 1).
Various wear media and accessories can be selected.(the optional sample holder and other optional accessories shall be matched with the test of hanging, damage degree, alcohol resistance test, coin scratch resistance test, etc.)
Ensure the stability and accuracy of the test: generally, the grinding head is of the same size and shape as the rubber wipe head at the end of the pencil. It is made of high quality abrasion materials.It can ensure the stability of the test.
Standard:
ASTM D3884 , ASTM D1175 , ASTM D1044 , ASTM D4060 , TAPPI T476 , ISO 9352 , ISO 5470-1 , JIS K7204 , JIS A1453, JIS K6902 , JIS L1096 , JIS K6964 , DIN 52347 , DIN 53109 , DIN 53754 , DIN 53799 etc.
Specifications
Item
Taber Linear Abrasion Testing Machine
5 kinds movement distance optional
Standard mobile distance 0.5”, 1”, ”, 3”, 4” or specified
Test speed
2~75 times/min, adjustable
(2,15,30,40, and 60 return/min are TABER standard)
Test times
999,999 times
Test load
Standard load 350g~2100g, optional
Power
220V, 50/60Hz
