Laboratory Small Plastic Cast Film Machine for TPU PE TPE Casting Film Line
Model
NG-X432
MOQ
1 Set
Lead Time
3-15 Working Days
Country of Origin
China
Package
Standard Export Wooden Box
OEM & ODM
Support
描述
用户评论 (0)
描述
Product introduction

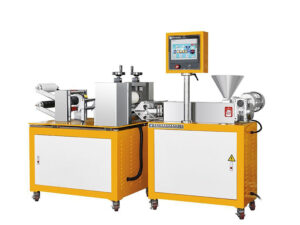

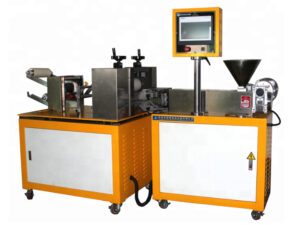

Cast film extrusion line consist of a lab precise single screw extruder, a molding system(die), a film casting, haul-off & winding machine and a SIEMENS PLC Touching Screen Control System.
It not only has wide range of technology adjustment (including speed, temperature, pressure, thickness, etc.), but also has a lot of functions such as real-time parameter acquistion, graphic displaying, recording and storing. It is an ideal tool for research institute to develop new material formula and film shaping technology.

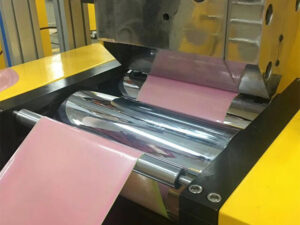

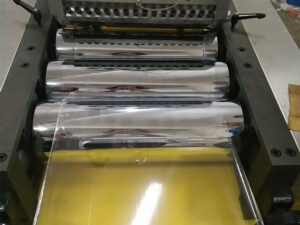

NG-X433-25-3 Cast Film machine have 3 calender roll, it has one more roll than regular machine. This design makes the film evenly and better gloss.
Product Application
1) Polymer casting property test;
2) New material formula development;
3) Optimization of production technology;
4) Production quality control.
Main Features
1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data
3) Cantilever roll structure making it easy to lead the film and be operated;
4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;

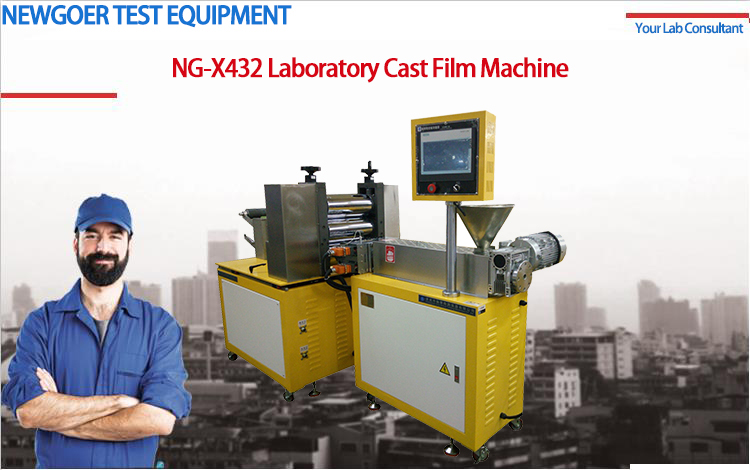

NEWGOER LAB CAST FILM MACHINE
Technical Parameter
Applicable materials
PP, PE, PVC, PS, PET, etc.
Screw diameters
mm
25
Screw rotating speed
rpm
0-95 (adjustable)
Screw L/D ratio
33
Temperature range
℃
Room temperature – 300℃
Film thickness
mm
0.03-0.5mm
Film width
mm
250 (customized)
Die width
mm
300
Working voltage
350V/50Hz/3 phases or Customerized
Motor power
KW
2.2
Total Power
KW
7
Control mode
SIEMENS PLC Control
