Specifications can be modified according to customer requirements.
Max Wire pitching:
99 mm
Max winding length:
600 mm
Max distance between points:
700 mm
Max winding Diameter:
600 mm
Face plate Diameter:
220 mm
Guider precision:
0.001 mm
Spindle resolution:
0.01 mm
Main shaft motor:
Brushless servomotor (Parker)
Guider motor:
Brushless servomotor – 1.2NM
Winding shaft speed:
0 -300 / 400 rpm*
Electrical supply:
380 V + N + GND/ 50 Hz/220Vac – 50Hz
Net weight:
250 kg approx.
User interface:
7inch (178mm) colour touch screen
Max. No. of programmable windings:
10,000 (per SD card)
Max. No. of windings per coil:
200
Type of programming:
CNC with colour touch screen
Torque and Speed
*There are many versions of the drive system, please contact your local representative to discuss your requirements.
Belt Position
version – 400 RPM
version – 300 RPM
Speed (Rpm)
Torque (Nm)
Speed (Rpm)
Torque (Nm)
1
420
85
300
130
Heavy duty coil winding machine series
Click for larger image
Heavy duty coil winding machine series
E-600 – Small sized bench Winding Machine; equipped with: –
Traverse head
Sturdy base
Tailstock – with security lock,
Guider system
& Safety shielded foot pedal.
Controlled by numeric PLC and electronic programming.
The applications of this machine is intended for the manufacture of solenoids, reactances, transformers, with capacity to make multiple windings and even distribution and power transformers.
There are various configurations of speed ranges, (depending machine version). This produces fast cycle time for high turn primary windings.

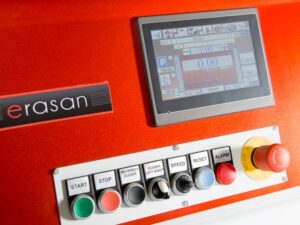

The colour touch screen provides a simple and intuitive programming system with graphical interface and on-screen help, allowing even the most complex windings to be programmed in short periods of time in the user’s choice of language. A foot pedal is provided so that the operator can control the machine manually if required.
Data storage is on a standard SD card, providing a quick and simple method of backing up programs on a PC.
